Our filter presses are designed for maximum user-friendliness and reliability. Thanks to innovative features such as automated pressure regulation and quick-change filter plates, various kinds of materials can be filtered efficiently while minimising production process interruptions. Additionally, our filter presses come in different sizes and configurations, making them ideal for a wide range of industries and applications.
Whether it be the chemical industry, the food and beverage sector or water treatment, our filter presses deliver consistent performance and optimised filtration. Using latest-generation filtration technologies, they help reduce both operating costs and environmental impact. This makes them a more sustainable and efficient choice for any production environment.

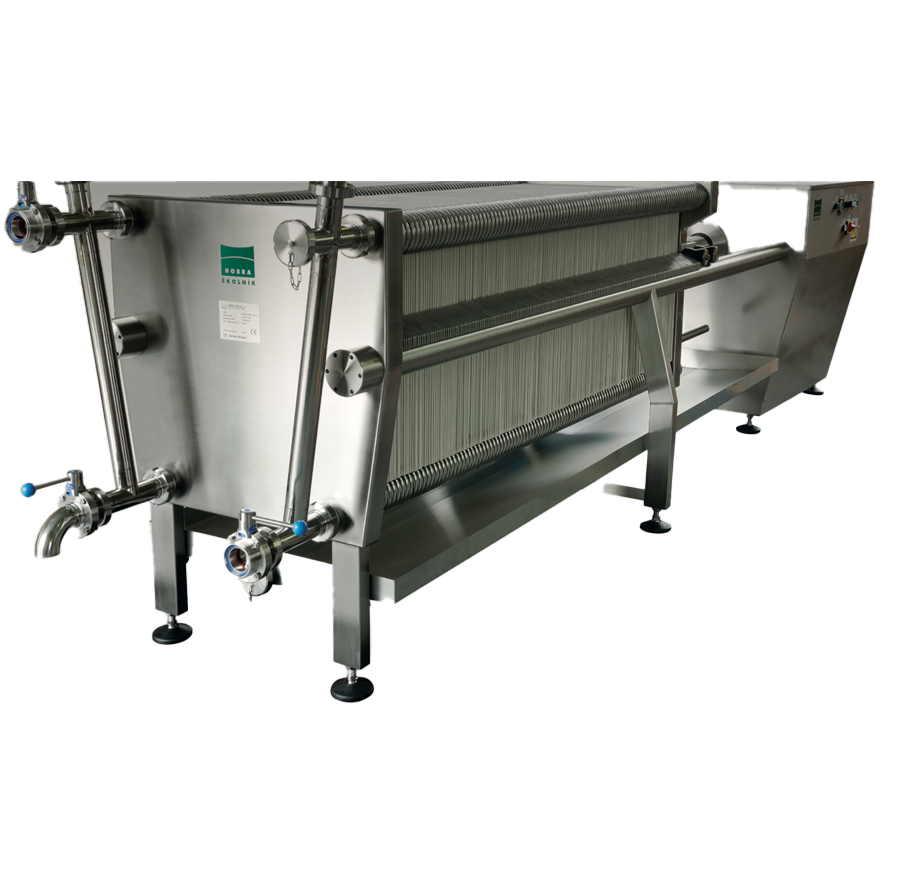

The HOBRACOL 200 filter press.
Size (surface area) I (max 0.97m2)
316L-grade steel inlet 316L (1.4404)
Inlet and outlet DN 15
Working pressure 6 bar
Maximum temperature 110°C
Support plates (316L-grade steel) 8mm
Draff frames (steel) 8.25mm
Manual withdrawal
Filter sheet dimension 200 x 200mm
Filtration surface / 1 sheet 0.0324m2
Pharmacy
Food
Drinks
The HOBRACOL 200 VS filter press.
Size (surface area) I (max 0.97m2)
304-grade steel inlet 304 (1.4301)
Inlet and outlet DN 15
Working pressure 4 bar
Maximum temperature 110°C
Support plates (304-grade steel) 8mm
Draff frames (304-grade steel) 8.25mm
Manual withdrawal
Filter sheet dimension 200 x 200mm
Filtration surface / 1 sheet 0.0324m2
Pharmacy
Food
Drinks
The HOBRACOL 400 filter press.
Size (surface area) I (max 33.7m2)
Size (surface area) II (max 52.8m2)
Size (surface area) III (max 18.5m2)
304-grade steel inlet 304 (1.4301)
Inlet and outlet DN 40
Working pressure 6 bar
Maximum temperature 110°C (Noryl, 95°C)
Support plates (316L-grade steel) 8mm
Support plates (Noryl) 12mm
Draff frames (304-grade steel) 15, 20, 40mm
Manual withdrawal and manual hydraulics
Filter sheet dimension 400 x 400mm
Filtration surface / 1 sheet 0.14m2
Pharmacy
Food
Drinks
The HOBRACOL 400 VS filter press.
Size (surface area) I (max 5m2)
Size (surface area) II (max 10m2)
304-grade steel inlet 304 (1.4301)
Inlet and outlet DN 40
Working pressure 4 bar
Maximum temperature 110°C (Noryl, 95°C)
Support plates (316L-grade steel) 8mm
Support plates (Noryl) 12mm
Draff frames (304-grade steel) 15, 20, 40mm
Manual withdrawal and manual hydraulics
Filter sheet dimension 400 x 400mm
Filtration surface / 1 sheet 0.14m2
Pharmacy
Food
Drinks
The HOBRACOL 600 VS filter press.
Size (surface area) I (max 33.7m2)
Size (surface area) II (max 52.8m2)
Size (surface area) III (max 66.6m2)
304-grade steel inlet 304 (1.4301)
Inlet and outlet DN 50
Working pressure 6 bar
Maximum temperature 110°C (Noryl, 95°C)
Support plates (316L-grade steel) 8mm
Support plates (Noryl) 12mm
Draff frames (304-grade steel) 15, 20, 40mm
Manual withdrawal and manual hydraulics
Filter sheet dimension 600 x 614mm
Filtration surface / 1 sheet 0.33m2
Pharmacy
Food
Drinks
Optimise your production process and maximise your output with our high-quality filter presses. Contact us for more information and find out how our solutions can elevate your business!
