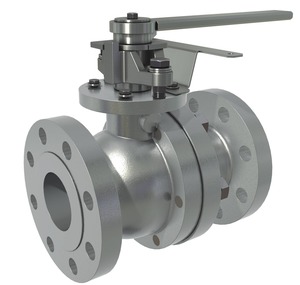

A complete range of ball valves is available, manufactured from bar stock or cast versions. The ball valves comply with both DIN and ANSI standards, ranging from ¼” to 12” (DN15 to DN300), and are available in materials such as stainless steel, carbon steel, and exotic alloys (hastelloy, titanium, bronze, 904L, Monel). Each ball valve is individually tested for leak tightness to ensure optimal safety and quality. Thanks to strict adherence to international standards, the ball valves are suitable for the most demanding applications.
In addition to standard solutions, custom ball valves are also available, including trunnion-type and floating ball valves, specifically designed for the oil and gas industry. These custom solutions are manufactured to customer specifications and meet the most stringent technical requirements.
Key features of the ball valves:
Looking for the right ball valve for your project? Our experts are ready to advise you.
N-Series
2VR-Series
3VBD/5VBD Series
PSB-Series
SN–Series
SSB- Series
Water
Paint
Oil & gas
Chemicals
1” - 2” full bore, delivery up to 6” (not all types)
ANSI 150 – 2500
Anti-static
Fire-safe to BS 6755 Part 2
10mm needle bleed
Only one (1) body joint
Anti-blow out stems
Handles can be removed without detriment to the stem sealing integrity
Low operating torque
NACE MR-01-75 latest revision as standard
Each valve is stamped with a unique identification number giving full traceability
Lockable isolation available
Patented
Non blocking multi-phase fluid discrimination via annulus vent
Water
Paint
Oil & gas
Chemicals
At BÈTA industrie we supply a complete range of ball valves. The ball valves are available in both versions produced from bar stock material and cast. In addition, the ball valves are available in DIN and ANSI versions from ¼” to 12” (DN15 to DN300) in stainless steel and carbon steel and also in exotic materials (hastelloy, titanium, bronze, 904L, monel etc). We test each ball valve individually for leaks, so we can guarantee safety. Quality and safety are our top priority!
The design of our ball valves is standard according to the standards of: EN 12516.2; ASME B16.34, ISO 14313, EN1759-1, ASME B16.5 and ANSI B1.1. PED 97/23/EC cat III Module H. ATEX zone 1-2 II 2G/D and zone 0 II 2G/Dc (certified on request). The Anti blow out stem, Chevron rings, Top flange are in accordance with ISO 5211. All valves are also 100% tested. All standard valves meet the requirements of high-quality and critical applications, in addition, many special gaskets, tests and designs are available on request. With this we guarantee the best ball valves that meet all your requirements and the set standards.

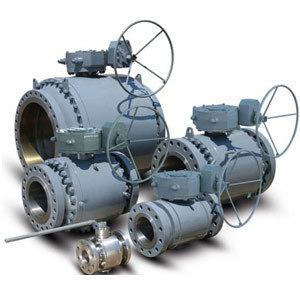

In addition to our program of standard ball valves, we have a complete program of ball valves (trunnion type and floating ball valves) for the oil and gas industry. These are usually made-to-order and are produced based on customer specifications and standards. Information about these ball valves can be found in the product sheets.
We like to think along with you to decide which type of ball valve is best suited for your project or situation. You can easily contact one of our specialists. This can be done by telephone on +31 79 341 55 18 or simply via the button below!
Do you have a question about this product?
Your BÈTA specialist is happy to advise you
